The basic function of a radome is to provide a defense between an antenna and the outside environment while simultaneously minimizing impact on electromagnetic performance. Radomes protect a wide range of ground and maritime systems for communications, weather radar, military precision tracking, fire control and other antenna systems. The proper selection of a radome can improve overall system performance, reduce downtime, and extend the antenna’s useful service life through prolonged component operation and possibly reduce antenna maintenance costs.

Adding a properly designed radome can be a huge benefit to an antenna system faced with adverse weather conditions. A radome will reduce lifecycle maintenance costs and allow for better antenna uptime during significant weather events.

We offer radome solutions capable of operating in common Air Traffic Management bands. The transmission loss prediction below is a sample of one solution developed for a specific ATM application with operating frequencies from 1-4 GHz. The transmission loss prediction takes into account radome diameter, dish diameter, as well as the ATM radome panel construction, both for the body and bolting seam.

Radomes provide weather protection and concealment.

Save Your Antenna

An antenna exposed to high winds, snow, ice, humidity, UV radiation, salt-laden air and other harsh environmental conditions results in reduced system up-time, component degradation, accelerated corrosion, projectile impacts, and reduced overall system performance. A radome isolates the antenna from these conditions, allowing operations to continue with much less downtime than experienced on a system without a radome.

The structural capability of a radome provides shelter for personnel performing operational duties and maintenance activities, and a security screen by preventing visual observation of the antenna system.

A blue shield icon with eight arrows points outward, symbolizing radome (radar dome) protection. Light gray background.

Isolate Environment

A simple blue padlock with a keyhole on a light gray background, symbolizing radome-level security and protection.

Increase Security​

A blue pause symbol within an incomplete radome-shaped circle, arrow pointing down at the gap, on a light background.

Reduce Downtime​

A blue Wi-Fi symbol with two curved lines above a solid circle, resembling a radome, on a light gray background.

Improve Antenna Performance​

Blue outlined wrench icon on a light gray background, minimalist style—ideal for radome maintenance or radome dome adjustments.

Reduce Lifetime Maintenance​

A simple blue outline of an open umbrella resembling a radome, with a curved handle, on a light gray background.

Shelter for Operators​

Why Infinite RCS

Infinite Technologies RCS, Inc. (IT RCS) is a world leader in the design, manufacture and installation of large ground-based radomes. We have provided radomes for many domestic and international customers using a wide variety of antenna systems in most environments on Earth. We regularly supply radomes to government entities, large prime contractors, system integrators, commercial OEMs, and various other customers . Applications include weather, ATC, Military, satellite and maritime to name a few. We have a proven product that meets, and often surpasses our highly technical customer expectations adding value and longevity to almost all antenna systems.

Our expertise stems from key personnel with years of experience analyzing existing radome systems, creating innovative design solutions, and developing a system for replacement of aging radome installations worldwide.

The extensive maintenance and repairs required on older radomes often result in downtime, reduced performance, and substantial maintenance and panel replacement costs for asset owners. IT RCS has developed viable and affordable solutions for radome fleet replacement. The radomes we manufacture are designed for a minimum service life of 20 years with a reduction in lifecycle costs up to 50%. These savings are realized without degrading performance; in fact, our products have shown substantial RF and structural performance improvements over many aging radome systems

A simple blue outline of a globe with abstract continents and subtle hints of radome structures on a light gray background.

Worldwide Provider​

Simple blue outline icon of two people with radome-inspired curved lines and circles, on a light gray background.

Experienced Professionals​

Blue outline of a light bulb on gray, its smooth, minimal lines subtly echoing the contours of radome domes for inspiration.

Innovative Designs​

Blue ribbon with a star center, outlined on light gray—ideal for honoring excellence in radome or radar dome technology.

Top Product Value​

A large white radome stands on a hill at sunset, dramatic clouds above and golden sunlight lighting the landscape and radome below.

Key Product Information

Years of experience supplying radomes provides the IT RCS team insight few others have. We have experience with specific elements of antenna design and operation which are critical to proper radome design. That allows us to design for better performance of the antenna housed within the radome.

Composite Radome Features

  • Tuned Bolting flanges
  • Compatible with Dual Pole Antenna Systems
  • Low IFR
  • Pseudo-Random Panel Geometry
  • Non-Coherent Scattering
  • Improved Sidelobe Performance
  • Antenna Polarization Neutral
  • Low Passive Inter-Modulation (PIM)
  • Durable, Long-Lasting Materials
  • Optimized Panel Sizes for Installation and Transport
  • No Metal Framework, Rigid, Self-supporting
  • Operational without Power

Environmental

A table of radome material properties, showing wind loads, temperature range, fire and fungus resistance, and hail impact testing.

Materials

Bar chart of radome transmission loss (dB) by frequency band (L, S, C, X) with bars for extra large, large, medium, small cables.

RF Performance

  • Tuned Bolting flanges
  • Compatible with Dual Pole Antenna Systems
  • Low IFR
  • Pseudo-Random Panel Geometry
  • Non-Coherent Scattering
  • Improved Sidelobe Performance
  • Antenna Polarization Neutral
  • Low Passive Inter-Modulation (PIM)
  • Durable, Long-Lasting Materials
  • Optimized Panel Sizes for Installation and Transport
  • No Metal Framework, Rigid, Self-supporting
  • Operational without Power

Panel Geometry

A pseudo-randomized panel layout is used for most configurations. Panel-to-panel joint attachment is accomplished through an impedance matched bolted lapjoint improving overall radome performance by minimizing the effets of insertion loss and cohert scattering.

Table of radome materials: fiberglass skin, fire-retardant resin, foam/honeycomb core, hydrophobic coating, RTV sealant, SS fasteners.
For each application, the mechanical and RF requirements are evaluated to establish an optimum solution of configuration.

Export Restrictions

Most of our radomes are classified as EAR99 or no license required (NLR), and do not require UTAR control. IT RCS does not conduct business with entities who are not in good standing with the U.S. Government.

Shipping

Each radome is packaged in fully enclosed wooden shipping crates compliant with international shipping standards to protect the contents form damage during transportation. Most crates are sized to fit inside a standard shipping container. Optional air transport crating is possible for most radome models.

Radome Warranty & Service Life

We have confidence in the durability of our radome products. We offer a warranty against defects in workmanship for 24 months from the date of installation or 30 months from the date of delivery—whichever comes first.

The nominal service life for our randomes is 20 years. With minimal maintenance and cleaning, the service life should exceed 20 years.

Model Identification Terrestrial

Diagram showing satellite antenna model numbers with radome diameter, radome height, fire retardant rating, frequency, and variants.

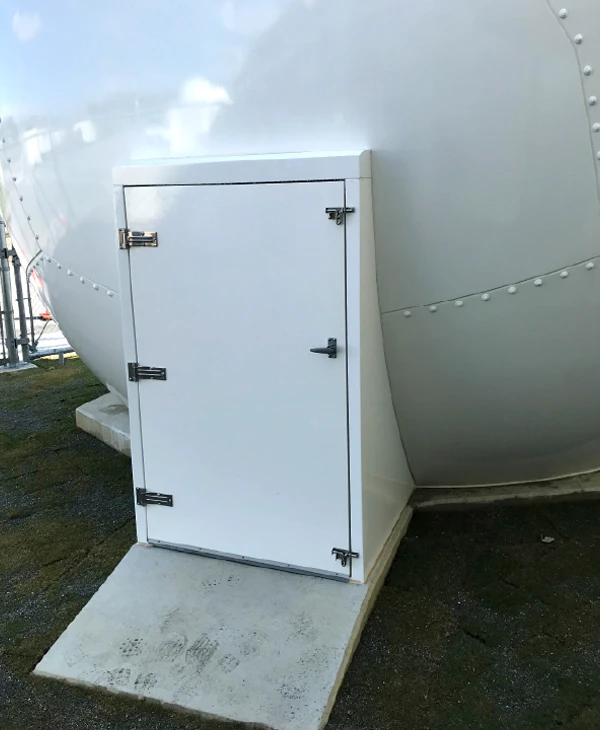

A small white door with metal hinges sits at the base of a large, smooth radome on a concrete platform outdoors.

Testing & Certification

We perform internal testing and material evaluation for the development of our radome materials and designs. For structural testing and material properties certifications, we utilize the services of accredited testing laboratories.

Mechanical and Environmental Considerations

Structural integrity of our radomes is never compromised. Each radome design is confirmed by rigorous analysis. All analysis is performed using recognized engineering standards. Material properties are empirically generated from test coupons manufactured with the same materials and processes used in the production environment. Mountainous terrain, gorges, ocean promontories, and special wind regions are examined for unusual wind conditions as necessary.

Standard Configuration

Table showing radome specs: Wind speed 155 mph (250 km/h), Snow & ice load 50 psi (235+ kg/m²), blue text for radome use.

Our radomes are evaluated to ensurethey meet each customer’s specific requirements. As such, we have a wide range of radome models available with high wind speed ratings, greater snow and ice load capabilities, or the ability to meet other atypical environmental conditions. All configurations remain compliant with our self-imposed structural safety factors.

Physical Considerations

Size Variables

Mounting Configuration – Ground or Elevated
Basic Wind Speed and Directionality
Gust Effect Factors
Weather Factors – Hurricane and Non-hurricane Locations
Terrain Exposure – Vegetation
Topographic Factors – Mountains and Gorges

Snow/Ice Loading

Balanced Loading
Unbalanced Loading
Exposure Factor
Thermal Factor
Importance Factor

Radome Diameter

A table showing Prime Focus (1.5x reflector) and Offset Feed (2.3x reflector), both for use in radome and radar domes designs.
Diagram of a satellite dish antenna with radome and labeled parts: antenna diameter, swing radius, height, ground clearance, base diameter.

Mounting Options

Diagram showing radar placements—radomes on structure, riser, ground, hill, vegetation, shelter/building, ship—with simple drawings.

Radome Diameter

Truncation is the height of the radome from base to zenith expressed as a percentage of the outside diameter. Truncations up to ~90% are available. Selection of the correct truncation is critical to achieving optimum RF performance. Ideally, the center of the radome and the rotation center of the antenna should be collocated. This arrangement ensures the antenna is always looking through the radome wall uniformly on either side of the antenna phase center projection, minimizing the impact on key performance characteristics.

Sizing

Radome diameter and truncation are primarily driven by antenna size and type. Most IT RCS radomes have a spherical shape with a trunca-tion or height usually between 70% and 90% of the radome diameter.

Although the exact radome size is determined by the specific antenna, some basic assumptions can be made to aid in obtaining a rough radome size. For preliminary design estimates, the following assumptions are used.
